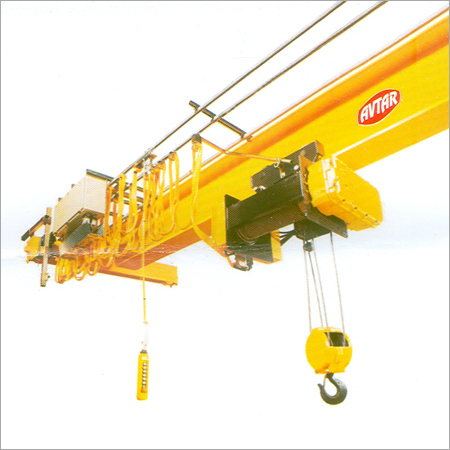

Single Beam E.O.T Cranes

Single Beam E.O.T Cranes
Single Beam E.O.T Cranes
Product Code : 19
Product Description

Single Beam E.O.T Cranes

These systems provide space for materials handling even when production units or warehouses are comparatively small and low. To minimize the capital costs for modifications to buildings to provide extra space, we utilize the minimum of space for our crane systems. Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available. Favorable dimensions result in the optimal highest hook position.

Using a comprehensive range of fixing arrangements the travelling cranes can be designed to fit the available space. All we need for the planning stage of the crane system are the clear dimensions of the building. We will then design the crane individually for you.

Design: Compact dimensions, low weight, easy to operate and easy to maintain, modular design with directs fits between components.

Some of the unique features of overhead EOT cranes include

  • High performance
  • Durable
  • Sturdy
  • Easy maintenance
  • Corrosion resistance

Technical Specifications

Capacity (Tons)

Span (mtr)

Wheel base (mm)

Head room clearance HRC(mm)

Clearance End ELS/ERS(mm)

Hook approach left side HALS(mm)

Wheel load of cranes(approx) tons

Total wt. Of cranes(ton)

1

5

2000

700

220

750

0.85

1.1

10

2500

800

220

750

1.05

2.1

20

3000

850

220

750

1.30

3.2

2

5

2000

800

250

750

1.50

1.70

10

2500

900

250

750

1.60

2.20

15

3000

1000

250

750

1.90

3.40

20

4000

1200

250

750

2.35

5.06

3

5

2000

800

250

850

2.05

2.16

10

2500

900

250

850

2.20

2.70

15

3000

1000

250

850

2.65

4.36

20

4000

1250

250

850

3.65

6.75

5

10

2500

950

250

950

3.45

3.30

15

3000

1200

250

950

4.10

6.10

20

4000

1300

250

950

4.50

7.60

7.5

10

2500

1000

250

1000

5.00

5.50

15

3000

1250

250

1000

5.50

6.50

20

4000

1400

250

1000

6.00

8.50

10

10

2500

1100

250

1100

6.60

5.50

15

3000

1350

250

1100

7.10

7.60

20

4000

1500

250

1100

7.70

9.80

15

10

2500

1200

250

1100

9.50

6.80

15

3000

1500

250

1100

10.10

9.70

20

4000

1600

250

1100

10.80

12.50
