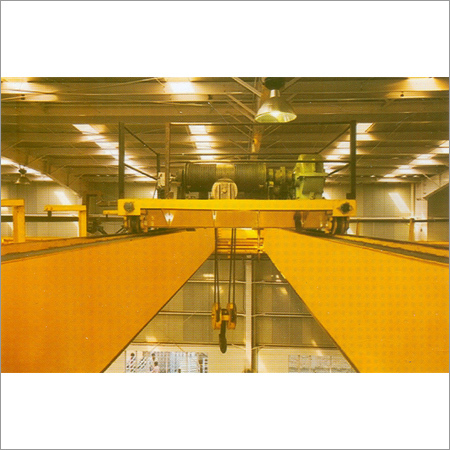

Double Beam E.O.T Cranes

Double Beam E.O.T Cranes
Double Beam E.O.T Cranes
Product Code : 20
Product Description

Double Beam E.O.T Cranes

When heavy loads and wide spans are required, the double girder travelling cranes show their strength. They consist of two torsion-free box girders. Double Girder travelling cranes are available with load capacities of up to 100 tonnes and with spans up to 30m.

Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allow the appropriate integration of travelling cranes in to new buildings as well as in to existing buildings. Just as with all other types of travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of deadweight can be achieved. An advantage that has financial benefits.

Design: Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components.

Technical Specifications

Capacity (Tons)

Span (mtrk appro)

Wheel base (mm)

Head room clearance HRC(mm)

Clearance End ELS/ERS(mm)

Hooach left side HALS(mm)

Hook approach right side HARS(mm)

Wheel load of cranes(approx) tons

Total wt. Of cranes(ton)

5

10

3800

1600

250

900

800

5.8

10.2

15

4000

1600

250

900

800

6.7

12.5

20

4200

1700

250

900

800

7.3

15.5


7.5

10

3800

1600

250

950

850

8.4

13.0

15

4000

1700

250

950

850

9.4

16.0

20

4200

1700

250

950

850

10.0

18.5

10

10

3800

1800

250

1000

900

9.5

13.5

15

4000

1800

250

1000

900

10.5

16.5

20

4200

1900

275

1000

900

11.5

19.5

15

10

3800

2000

275

1000

900

13.5

18.5

15

4000

2200

275

1000

900

15.7

21.5

20

4200

2300

275

1000

900

16.8

25.0


20

15

4200

2400

300

1100

900

18.4

24.0

20

4400

2500

300

1100

900

19.3

27.5


25

15

4400

2600

300

1150

1000

21.6

26.0

20

4600

2800

300

1150

1000

22.8

30.0


30

15

4600

2800

300

1200

1000

26.0

30.0

20

4800

3000

300

1200

1000

28.0

36.5


40

15

4800

3000

325

1300

1050

31.8

35.0

20

5000

3200

325

1300

1050

33.4

40.0


50

15

5000

3200

350

1400

1100

32.0

41.0

20

5200

3500

350

1400

1100

33.5

47.5


60

15

5600

3800

400

1600

1200

37.3

60.0

20

5800

4000

400

1600

1200

38.9

71.0

80

15

5600

4000

450

1900

1300

39.0

78.0

20

5800

4200

450

1900

1300

41.0

90.0

100

15

5800

4200

450

1900

1400

49.5

95.0

20

6000

4500

450

1900

1400

52.0

110.0
